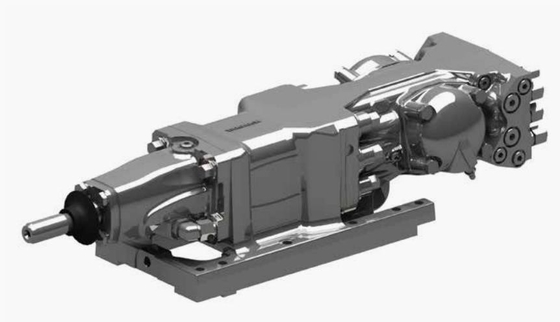

RD520 hydraulic rock drill is suitable for mining development and excavation of large mines
Product feature of Rock Drills
RDX5 is a rugged rock drill for heavy rock drilling. It is designed for face and long hole drilling and is also suitable for For rock anchoring. The RDX5 is designed to even under the harshest conditions.The RDX5 rock drill is known for its exceptional durability. This Robustness is achieved through less stressful seams and The design is simple with only two moving parts. the design The hydraulic efficiency of the rock drill is increased, while Reduce parts wear.
RDX5 provides excellent maintainability through modular design Architectural and visual wear indicators. it also has a Integrated bracket for easy servicing.
Shank lubrication drains lead to feed surfaces to reduce Lubricating oil smoke, creating a more comfortable working environment surroundings.
Product data of Rock Drills
| Technical data | |
| Hole diameter range | 43 - 64 mm |
| Hole diameter reaming | 76 - 127 mm |
| Power class | 20 kW |
| Percussion rate | 67 Hz |
| Operating pressure Percussion |
120 - 220 bar |
| Rotation motor type | OMS 80, OMS 125 or OMS 160 |
| Drill steels | R32,R39 or Hex35 mm drifter rods, MF-rods highly recommended |
| Shanks | 45mm/T38/R32/T35/R38/T45 |
| Weight | 210 kg |
|
|
