| MOQ: | 1PCS |
| Price: | Price negotiations |
| Standard Packaging: | wooden box package |
| Delivery Period: | 20 work days |
| Payment Method: | T/T |
| Supply Capacity: | 1+PCS+20 work days |

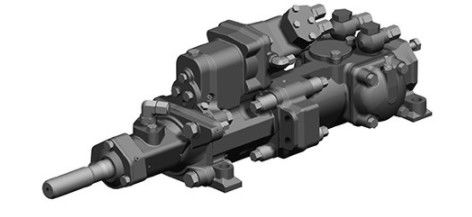

HL710S is a hydraulic top hammer rock drill designed for DL2710 and DL2720 underground longhole drills
Product feature of Rock Drills
HL710S hydraulic rock drill has high drilling capacity, easy maintenance and low operating cost.
The structure of the rock drill is based on the main module and four short-side bolts connected together to ensure a minimum number of joint surfaces and large contact surfaces.
The design of the influence module is simple, consisting of only two moving parts, the piston surrounding the piston and the distributor sleeve, and the moving part is not in contact with the drill body module.
There are two variants of the rotating motor to meet the requirements of different hole diameters and the rotation torque and speed of the rock formation.
The optional power extractor is used to manually open the rock drilling tool joints. The design of HL710S has obtained a number of patents.
Product data of Rock Drills
| Technical data | |
| Hole diameter range | 54 - 89 mm |
| Kinetic power | 20 kW |
| Percussion rate | 52 Hz |
| Operating pressure Percussion Rotation |
Up to 190 bar Up to 200 bar |
| Rotation motor type | OMT200 / 250 |
| Stabilizer | Sleeve type |
| Shank length | 600 mm |
| Rock tools and hole diameters | ||
| Thread | Rod mm | Hole mm |
| T35 | 39 | 54 - 57 |
| T38 | 39 | 64 |
| T45 | 46 | 76 |
| T45 | 65 (tube) | 76 - 89 |
| T51 | 52 | 89 |
|
|
