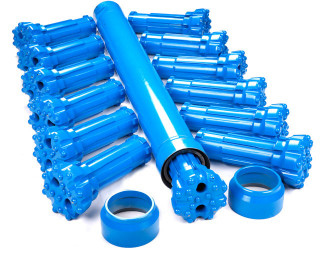

DTH Reverse Circulation Hammer For Exploration Drilling 178mm Dia

MOQ:	1PCS
Price:	Price negotiations
Standard Packaging:	wooden box package
Delivery Period:	20 work days
Payment Method:	T/T
Supply Capacity:	1+PCS+20 work days

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Model Number

5 1/4", 5 1/2"

Material:

Tungsten Carbide

Condition:

Type:

Center Drill Bit

Drilling Diameter:

140 - 450 Mm

Highlight:

DTH Reverse Circulation Hammer

Drilling Reverse Circulation Hammer

Circulation Hammer Drill Bits

Product Description

Dth Reverse Circulation Hammer For Exploration Drilling 127-178mm Bit Dia of DTH Hammers and bits

Product features of DTH Hammers and bits

RCseries reverse circulation DTH Hammer is the latest developed product of our company. It is mainly used for deep exploration drilling and ore grade control.

It has the following characteristics:

1.Based on previous experience of ordinary hammers, combined with the features of reverse circulation hammer, optimized internal structure and ideal energy transfer, thus ensuring the series of hammers drilling with fast, smooth and continuous sampling.

2. The internal structure is very simple with components of high rigidity, thus ensuring long life and easy maintenance of the hammer.

3.The collection tube adopts an integrative design and can be replaced without disassembling the hammer. With carburizing treatment, it has good abrasive resistance.

4.Equipped with bits designed with patent. Simply by replacing the drill bit, the same hammer can drill holes of different sizes ensuring that the sample is not contaminated.

5. In difficult conditions such as loose soil, hard rock and plenty of water exists, sampling can be done well.

Technical specification of DTH Hammers and bits

Technical Data for RC Hammer:

DTH hammer type		HRC45	DTH hammer type		HRC55	HRC65	HRC52
Length(with bit)		1020	Length(with bit)		1111	1250	1208
Weight(less bit)		94	Weight(less bit)		66.5	110	70
External diameter		Φ99	External diameter		Φ126	Φ146	Φ126
Bit shank		HRC45	Bit shank		HRC55	HRC65	HRC65
Hole range(mm)		Φ114-127	Hole range(mm)		Φ133-152	Φ155-190	Φ133-146
Connection thread		upon drill the tube
Working pressure		1.0-3.0Mpa	Working pressure		1.3-3.5Mpa	1.3-3.5Mpa	1.5-3.5Mpa
Impact rate at 1.7Mpa		30Hz	Impact rate at 2.4Mpa		35Hz	28Hz	35Hz
Recommended Rotation speed		25-40r/min	Recommended Rotation speed		25-40r/min	25-40r/min	25-40r/min
Air consumption	1.0Mpa	8.0m3/min	Air consumption	1.7Mpa	16.0m3/min	20.0m3/min	16.0m3/min
	1.8Mpa	12.0m3/min		2.4Mpa	22.0m3/min	26.0m3/min	22.0m3/min
	2.4Mpa	16.0m3/min		3.0Mpa	28.0m3/min	35.0m3/min	28.0m3/min

Reverse circulation drill bits:

Drill Bit	Bit Dia. (mm)	NO.Air	Gauge	Front	Weight	Part No.
Drill Bit	Bit Dia. (mm)	Holes	Buttons	Buttons	(Kg)	Part No.
HRC	115	2	8×φ14	8×φ13	14	HRC45-115
	140	2	8×φ16	8×φ14	16.5	HRC55-140
	165	2	8×φ18	8×φ16	19.5	HRC65-165
Mic	133	2	8×φ16	8×φ14	17.5	Mic-133
	140	2	8×φ16	8×φ14	18	Mic-140
	146	2	8×φ18	8×φ14	20	Mic-146
PR5	133	2	8×φ16	8×φ14	12.5	PR5-133
	140	2	8×φ16	8×φ14	13	PR5-140
	146	2	8×φ18	8×φ14	13.5	PR5-146
PR4	115	2	8×φ16	8×φ13	14.4	PR4-115
	127	2	8×φ16	8×φ14	15	PR4-127
	133	2	8×φ16	8×φ14	15.5	PR4-133

Tags:
DTH Water Well Drilling Hammer,

Ore Mining DTH Hammer Bit,

Alloy Steel DTH Hammer Bit
