Product Details:
|
| Product Name: | Drill Shank Adapter | Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining, Quarrying |
|---|---|---|---|
| Type: | Drill Shank | Machine Type: | Drilling Tool |
| Material: | Carbon Steel | Processing Type: | Forging |
| Use: | Ore Mining | Place Of Origin: | China |
| High Light: | Furukawa hex drill rod,hex drill rod R38 T38,metric drill rod 600mm |
||

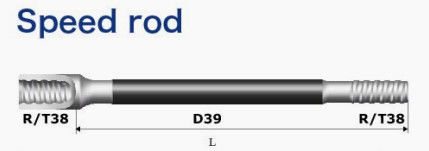

MF R38/T38 1220-5525mm Rock Drilling Quick Rod for Atlas/Furukawa/Montater//Tamrock
Product feature of Rock Drill Rods
HZJX is mainly used in the production of mining, drilling, drilling, quarrying and other related industries.
Can be designed and manufactured according to customer requirements.
We can provide different lengths and different types of screws for conveying rods, as shown in the picture
Thread specifications: R25, R32, R38, T38, T45, T51, GT60, etc.
Application: bench drill, construction, open-pit mining, quarrying
Processing: CNC and proprietary heat treatment process
Packing: Packed in a carton first, then packed into a wooden box
Delivery: After receiving the advance payment, delivery will be made within 2 to 15 working days.
QC (Quality Control): In cooperation with materials experts of Guizhou University, we have a unique inspection.
Material: high-quality alloy steel, 64 bar with the same
Body type: Hexagonal
Threaded connection: R25, R32, R38, T38, T45, T51 and so on.
Length: 600mm-6400mm
Material: high-quality alloy steel, 64 bar with the same
Body shape: round
Threaded connection: R25, R32, R38, T38, T45, T51, GT60 like.
Length: 600mm-6400mm
Product data of Drill Rock Drilling Rod
| SPECIFICATION FOR Rock Drilling Rod MF R38/T38 | ||
| Length(mm) | Diameter(mm) | Weight(kg) |
| 1220 | 39 | 10.9 |
| 1525 | 39 | 13.3 |
| 1830 | 39 | 15.6 |
| 2435 | 39 | 20.5 |
| 3050 | 39 | 25.5 |
| 3660 | 39 | 30.4 |
| 4270 | 39 | 35.4 |
|
4305 |
39 | 35.7 |
| 4920 | 39 | 40.8 |
| 5525 | 39 | 45.9 |
