Product Details:
|
| Product Name: | Drill Shank Adapter | Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining, Quarrying |
|---|---|---|---|
| Type: | Drill Shank | Machine Type: | Drilling Tool |
| Material: | Carbon Steel | Processing Type: | Forging |
| Use: | Ore Mining | Place Of Origin: | China |
| Highlight: | Rock Drilling Rod,Carbon Steel drill rod,drill rod 2400mm |
||

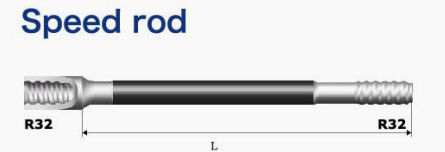

R32 915-3660mm Rock Drilling Quick Rod for Atlas/Furukawa/Montater//Tamrock
Product feature of Rock Drill Rods
HZJX is mainly used in the production of mines, shrinking mines, tunneling, drilling, quarrying and other related industries.
Can be designed and manufactured according to customer requirements.
MF and 64 bars are made of the same drill bit and are produced by CNC machine tools and advanced heat treatment processes.
In addition, in order to ensure the long life of the MF drill bit, we use a friction welding head and connect an internal thread, which can be easily damaged.
As shown in the picture, we can provide different lengths and different types of screw push rods.
Thread specifications: R25, R32, R38, T38, T45, T51, GT60, etc.
2 Introduction of the model
Quality drill
Standard: ISO9001
Material: high-quality alloy steel, 64
Shape: Hexagonal
Threaded connection: R25, R32, R38, T38, T45, T51, etc.
Length: 600mm-6400mm
Delivery time: 7-15 days
Material: high-quality alloy steel, same as 64
Shape: round
Threaded connection: R25, R32, R38, T38, T45, T51, GT60, etc.
Length: 600mm-6400mm
Delivery time: 7-15 days
Product data of Drill Rock Drilling Rod
| SPECIFICATION FOR Rock Drilling Quick Rod R32 | ||
| Length(mm) | Diameter(mm) | Weight(kg) |
| 915 | 32 | 4.8 |
| 1100 | 32 | 6.3 |
| 1220 | 32 | 6.9 |
| 1525 | 32 | 8.8 |
| 1830 | 32 | 10.7 |
| 2400 | 32 | 14.1 |
| 3050 | 32 | 17.8 |
| 3660 | 32 | 21.0 |
