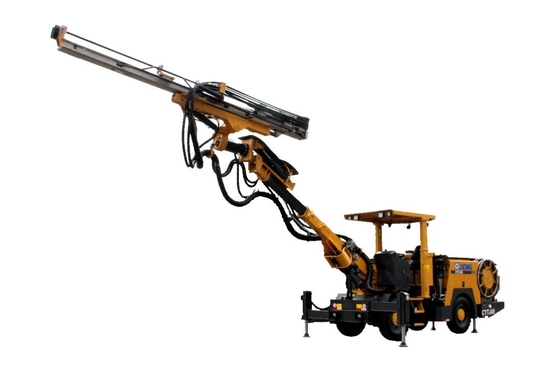

Single Arm Excavation Drilling machine Rig 3.5M mine hole

Single Arm Excavation Drilling machine Rig 3.5M mine hole

MOQ: 1PCS
Price: Price negotiations
Standard Packaging: wooden box package
Delivery Period: 20 workday
Payment Method: T/T
Supply Capacity: 1+PCS+20 workday
Detail Information
Place of Origin
China
Model Number
CYTJ45 Wagonette drill Machine
Product Name:
Drilling Rig
Applicable Industries:
Excavation And Construction Of Various Underground Tunnels And Culverts Such As Metal Mines, Hydropower, Etc.
Product Type:
Rock Drilling Equipment
Maximum Coverage Area (㎡):
35
Minimum Height Of Mine Hole (m):
3.5
Overall Size (mm):
11400×1750×2430(3130)
Operating Range (width × Height, Mm):
6600×6630
Weight:
13400
Highlight:

Single Arm Excavation Drilling Machine

,

3.5M Excavation Drilling Machine

,

Single Arm Excavation Drilling Rig

Product Description

Single arm excavation drilling rig



Product introduction of drilling rig



CYTJ45 is mainly suitable for the excavation construction of various underground roadways and culverts such as metal mines, hydropower, etc. It is also suitable for drilling blasting holes and drilling bolt holes in narrow ore veins and tailings mining, small roadways, etc. The equipment adopts hydraulic rock drilling system with advanced system, fast rock drilling speed and high work efficiency; the whole machine is compact in structure, flexible in maneuverability, convenient for operation in narrow spaces, and the maximum operating coverage area: 35㎡.



Main technical highlights of the product


Rock drill
The imported rock drill has the characteristics of super anti-bending ability, high drilling speed and low drilling tool loss, which effectively improves the adaptability of tunnel edge drilling.
thruster
Light aluminum alloy beam, high-efficiency bending, torsion and fatigue resistance, long service life. The unique single-layer arrangement of the hose reel, combined with the reliable pipe clamp structure, has good hose tensioning performance, effectively prolonging the life of the hose and reducing the maintenance intensity;


Drill boom
The drill arm is kept in parallel in all directions, and the positioning is fast and accurate; the square structure has high strength and good shock absorption performance;


Drilling system
It has the functions of anti-jamming, anti-running and automatic retraction, which can effectively improve the drilling efficiency and reduce the loss of drilling tools;


Hydraulic system
The auxiliary action of the outrigger and ceiling light adopts the electronic control design, the pipeline is simplified, and the maintenance is easy;


Electrical System
The electrical components of international famous brands such as Schneider and Siemens are selected, which have high reliability and long service life; they are equipped with protection and alarm functions such as ground fault protection, phase sequence protection, motor overload protection and engine fault alarm.



Product data of drilling rig



Sequence Number

Configuration

PCS
1 Engine 1
2 Front axle 1
3 Rear axle 1
4 Hydraulic rock drill 1
5 Three-phase asynchronous motor 1
6 Speed changing box 1
7 Water pump 1
8 Impact pump 1
9 Positioning pump 1
10 Rotary pump 1
11 Double gear pump 1
12 Cable reel 1
