Product Details:
|
| Models: | HRD 204 | Oil Pressure: | 16 Mpa |
|---|---|---|---|
| Oil Flow: | 15 I/min | Frequency: | 1350 Bpm |
| Percussion Energy: | 45 J | Consumed Power: | 5 KW |
| High Light: | HRD 204 hand held hydraulic rock drill,hand held rock drill 1350 bpm,4 gears hand held hydraulic rock drill |
||

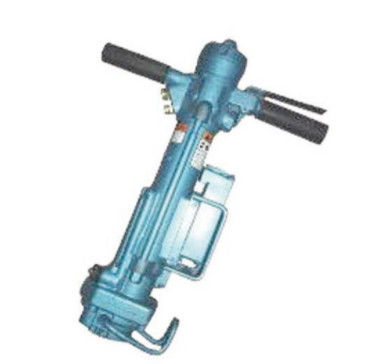

Rock Drilling Tools HRD204 hand held hydraulic rock drill
Product feature of Rock Drilling Tools
Internal air compressor, without air pressure and water supply from the outside;
Low noise, low dust;
A knob can switch 4 gears, can be adjusted according to the speed of strike and turn.
Product data of Rock Drilling Tools
| Technical data | ||
| Percussion mechanism | ||
| Oil Pressure | Mpa | 16 |
| Oil Flow | Oil Flow | 15 |
| Frequency | bpm | 1350 |
| Percussion energy | J | 45 |
| Consumed power | kW | 5 |
| Rotation mechanism | ||
| Oil Pressure | Mpa | 16 |
| Oil Flow | l/min | 10 |
| Rotation speed(max) | rpm | 400 |
| Rotation torque(max) | Nm | 51 |
| Consumed power | kW | 3 |
| Air displacement | m³ | 0.57 |
| Gas pressure | Mpa | 0.5 |
| Weight | kg | 22 |
