Product Details:
|
| Place Of Origin: | China | Product Name: | Drill Shank Adapter |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining, Quarrying | Type: | Drill Shank |
| Machine Type: | Drilling Tool | Material: | Carbon Steel |
| Processing Type: | Forging | Use: | Ore Mining |
| High Light: | T45 brace shank adapter,drill bit shank adapter 780mm,drill bit shank adapter 90516273 |
||

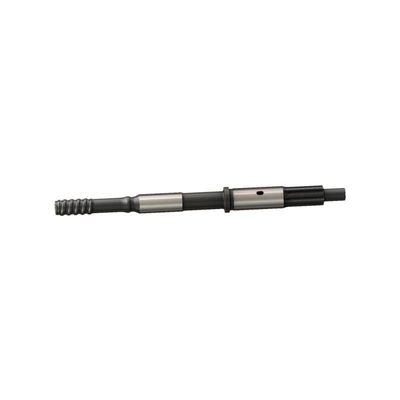

R32/T38/T45 780mm Drill Shank adapter for Atlas Copco COP1338EX NO. 90516273/90516278/90516293
Product Application of Drill shank adapter
HZJX main production drill mines, tunnels, tunnels, quarrying and related industries, can be designed and manufactured according to special requirements of customers.
If you do you need, all the connectors can handle the production of male screw or female screw ether.
Male pin connectors are generally more suited to the presence of high bending stress drift, tunnels, and expansion applications. The length of the perforations to the total supply is important, for example, using a threaded joint bolt when limited space and time.
Flushing medium is transferred to the adapter and the drill bit rotational torque processing tasks, feed force and impact energy.
Stem adapter is made of a material specially selected, after burning curable material intended to withstand the impact resistance and digging modern design, sufficient to ensure that the handle portion has elasticity.
Product data of Drill Shank Adapter
| SPECIFICATION FOR SHANK ADAPTER COP1338EX | ||||||
| Thread | Length(mm) | Dia(mm) | Weight(kg) | Part NO. | ||
| Atlas Copco | Boartlongyear | |||||
| R32 | 780 | 60 | 10.1 | 90516273 | ||
| T38 | 780 | 60 | 10.2 | 90516278 | ||
| T45 | 780 | 60 | 10.4 | 90516293 | ||
