Product Details:
|
| Place Of Origin: | China | Product Name: | Drill Shank Adapter |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining, Quarrying | Type: | Drill Shank |
| Machine Type: | Drilling Tool | Material: | Carbon Steel |
| Processing Type: | Forging | Use: | Ore Mining |
| High Light: | Copco 2160EX Drill Shank adapter,T60 pneumatic drill shank adapter,Copco 2160EX threaded drill rod |
||

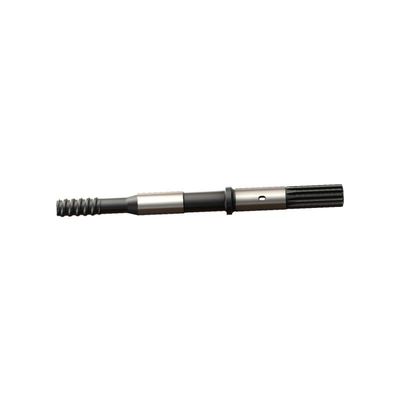

T51/T60 770mm Drill Shank adapter for Atlas Copco 2560EX/Copco 2160EX rock drill 90516048/7306-3699-01/90516053/7600-3699-01
Product Application of shank adapter
mainly produces rock-drilling tools for mining,constriction,tunneling,quarrying and related industrials.We can special design and manufacture according to clients inquiry is available .
All shank adapters could be produced with ether male or female threads if there is actually necessary .
Male shank adapters are generally better suited for drifting , tunnelling and extension applications where high bending stresses are present . While female shank adapters are used when the drilling space is limited and the total feed length is important , for example underground bolting .
The task of the shank adapter is to transmit rotation torque , feed force , impact energy and flushing medium to the drill rods and drill bits .
The shank adapters from are there for designed to with stand the high impact power of modern rock drills and made from specially selected material which also is hardened through cauterizing and ensure that the shank is sufficiently resilient .
| SPECIFICATION FOR SHANK ADAPTER COP2160EX/COP2560EX | ||||||
| Thread | Length(mm) | Dia(mm) | Weight(kg) | Part NO. | ||
| Atlas Copco | Boartlongyear | |||||
| T51 | 770 | 63 | 13.3 | 90516048 | 7306-3699-01 | |
| T60 | 770 | 63 | 14 | 90516053 | 7600-3699-01 | |
