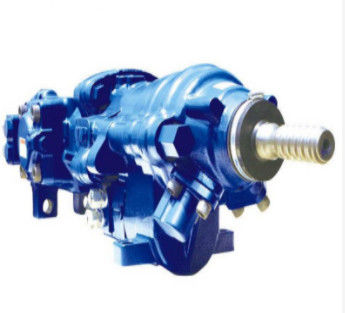

YDH 210 Hydraulic Rock Drill 175 Bar
  • name

YDH 210 Hydraulic Rock Drill 175 Bar

MOQ: 1PCS
Price: Price negotiations
Standard Packaging: wooden box package
Delivery Period: 20 work days
Payment Method: T/T
Supply Capacity: 1+PCS+20 work days
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YDH
Model Number
YDH 210
Models:
YDH 210 (YYG 180)
Percussion Oil Pressure:
175 Bar
Percussion Oil Flow:
80 - 100 I/min
Rotation Oil Flow:
30 - 44 I/min
Rotation Oil Pressure:
150 Bar
Output Energy:
18 KW
Highlight:

T45 Rock Drilling Tools

,

R38 hydraulic rock drilling machine

,

YDH 210 hydraulic rock drill

Product Description

Rock Drilling Tools YDH 210 hydraulic rock drill Suitable for T45,T38,R38 or R32 drilling tools

Product feature of  Rock Drilling Tools

The YHD210 contains high strength spline sleeves for T45,T38,R38 or R32 specifications.
Water injection sleeve can be high pressure water or wind as slag discharge medium.
The effective aperture is 43-115mm.

Product data of Rock Drilling Tools

Technical data
Percussion Oil Pressure bar 175
Percussion Oil Flow l/min 80 - 100
Rotation Oil Pressure bar 150
Rotation Oil Flow l/min 30 - 44
Rotation torque(max) Nm 830
Rotation speed(max) rpm 250
Percussion frequency min 2500-3700
Percussion energy J 300
Output energy kW 18
Drilling diameter mm 43 - 115
Weight kg 180





YDH 210 Hydraulic Rock Drill 175 Bar 0
