Product Details:
|
| Product Name: | Connection Sleeve | Applicable Industries: | Construction Works , Energy & Mining |
|---|---|---|---|
| Machine Type: | Drilling Tool | Material: | Carbide |
| Use: | Coal Mining | Advantage: | High Wear Resistant |
| Degree: | 190mm | ||
| High Light: | T51 Drill Pipe Coupling,T38 Drill Pipe Coupling,T45 Drill Pipe Coupling |
||

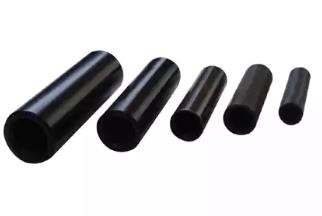

T38 T45 T51 Drill Pipe Coupling / Mining Equipment Accessories-Coupling Sleeve
Product feature of Rock Drilling Tools
Coupling sleeve,called coupling too,using connect extention rod and shank adapter.
We can produce semi-bridge and fully-bridge according to your requirement.
The connecting sleeve is mainly used for the shank and the drill rod and the drill rod and the connecting rod is connected between the.
For reducing the connecting sleeve and the connecting sleeve with the same diameter.
Main specifications R32, T38, T45, T51 reducer connected set of R25-R32, R28-R32, R32-R38, R32-T38, R32-T45, T38-T45 and, due to the need of energy transfer and handling, on the material properties and processing technology of higher requirements, connecting sleeve of my company's production, the high quality alloy steel forging processing into, the thread processing the special machining center, high machining precision, with good thread and prolong the prolonging the service life of the connecting sleeve.
|
Product Name: |
Coupling Sleeves |
|
Description: |
Coupling Sleeves Couplings sleeve are used to connect several rods to each other |
|
Material: |
Alloy steel bar |
|
MOQ: |
No MOQ required for testing and trial order |
|
Type |
full-bridge,semi-bridge,same diameter etc. |
|
Thread type |
R22,R25,R28,R32,R38,T38,T45,T51 |
|
Diameter |
33mm-76mm |
|
Length |
140mm-250mm |
|
Color |
Gold, Black |
More choose
|
|
Length |
Dia.(mm)
|
Thread
|
Weight
|
|
|
mm |
in |
||||
|
Coupling sleeves
|
210 |
8 1/4 |
63 |
T45 |
3.0 |
|
210 |
8 1/4 |
66 |
|
3.3 |
|
|
210 |
8 1/4 |
68 |
|
3.6 |
|
|
210 |
8 1/4 |
66 |
|
3.3 |
|
|
Coupling sleeve of different diametre
|
190 |
7 1/2 |
63 |
R32-T45 |
3.2 |
|
190 |
7 1/2 |
63 |
T38-T45 |
2.9 |
|
|
210 |
8 1/4 |
63 |
T38-T45 |
2.8 |
|
