T45 Rock Drilling Tools YHD950 Hydraulic Rock Drill 140Mpa

T45 Rock Drilling Tools YHD950 Hydraulic Rock Drill 140Mpa
T45 Rock Drilling Tools YHD950 Hydraulic Rock Drill 140Mpa

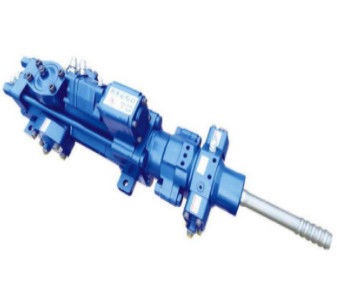

Large Image :  T45 Rock Drilling Tools YHD950 Hydraulic Rock Drill 140Mpa

Product Details:
Place of Origin: China
Brand Name: YDH
Model Number: YHD950
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Price negotiations
Packaging Details: wooden box package
Delivery Time: 20 work days
Payment Terms: T/T
Supply Ability: 1+PCS+20 work days

T45 Rock Drilling Tools YHD950 Hydraulic Rock Drill 140Mpa

Description
Models: YHD 950 Oil Pressure: 140 Mpa
Oil Flow: 120-140 I/min Frequency: 150 Bpm
Percussion Energy: 540 J Output Energy: 25 KW
High Light:

T45 Rock Drilling Tools

,

YHD950 hydraulic rock drill

,

hydraulic rock drill 140Mpa

Rock Drilling Tools YHD950 hydraulic rock drill high strength spline sleeve suitable for T51 or T45 specifications

Product feature of  Rock Drilling Tools

The YHD950 contains a high strength spline sleeve suitable for T51 or T45 specifications.
The YHD950 has a reverse impactor on the front end to reduce the risk of stuck drillstring loss.
Efficient impact piston design ensures long duration, stable high speed drilling.
Effective aperture 76mm or maximum aperture 140mm.

Product data of Rock Drilling Tools

Technical data
Percussion Oil Pressure bar 140
Percussion Oil Flow l/min 120-140
Rotation Oil Pressure bar 150
Rotation Oil Flow l/min 50-60
Rotation torque(max) Nm 1200
Rotation speed(max) rpm 150
Percussion frequency min 2500
Percussion energy J 540
Output energy kW 25
Drilling diameter mm 76 - 140
Weight kg 300





T45 Rock Drilling Tools YHD950 Hydraulic Rock Drill 140Mpa 0
