Energy Mining Quarry Taper Drill Bit Dia 32mm For Construction Works

Energy Mining Quarry Taper Drill Bit Dia 32mm For Construction Works
Energy Mining Quarry Taper Drill Bit Dia 32mm For Construction Works Energy Mining Quarry Taper Drill Bit Dia 32mm For Construction Works Energy Mining Quarry Taper Drill Bit Dia 32mm For Construction Works Energy Mining Quarry Taper Drill Bit Dia 32mm For Construction Works

Large Image :  Energy Mining Quarry Taper Drill Bit Dia 32mm For Construction Works

Product Details:
Place of Origin: China
Brand Name: HZJX
Model Number: 4°46’, 6°, 7°, 11°, 12°;
Payment & Shipping Terms:
Minimum Order Quantity: 100000PCS
Price: Price negotiations
Packaging Details: wooden box package
Delivery Time: 20 workday
Payment Terms: T/T
Supply Ability: 1+PCS+20 workday

Energy Mining Quarry Taper Drill Bit Dia 32mm For Construction Works

Description
Product Name: Taper Drill Bit Applicable Industries: Construction Works , Energy & Mining
Type: DRILL BIT Machine Type: Drilling Equipment
Material: Carbide Processing Type: Forging
Use: Well Drilling Place Of Origin: China
High Light:

Quarry Taper Drill Bit

,

Construction Works Taper Drill Bit

,

Dia 32mm Taper Drill Bit

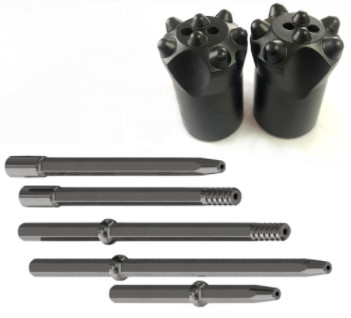

Taper drill rods and taper drill bit for mining,quarry drilling

Product Application of  Taper drill bit

Small hole tapered ground drill bit is the most popular tapered drill bits with a wide selection of head diameters from 26mm to 48mm. With carbide buttons hot pressed on the bit skirts, tapered button bits have a good drilling performance and are excellent in longevity.



We manufacture various tapered button bits in different degrees as below:

Bit diameter: 32mm ~ 41mm;
Tapered degree: 4°46’, 6°, 7°, 11°, 12°;
Shank sizes: Hex. 19mm, Hex, 22mm and Hex. 25mm;
Buttons configuration: 4 buttons, 5 buttons, 6 buttons, 7 buttons, 8 buttons

Product data of Taper drill bit



Diameter Buttons*De Flushing hole Skirt Length
mm Gauge Front Side Front mm
32 3x8mm 2x7mm 1 1 50,55,60
32 4x7mm 2x7mm 1 1 50,55,60
32 5x7mm 2x7mm 1 1 50,55,60
32 6x7mm 2x7mm 1 1 50,55,60
32 6x7mm 2x7mm 1 2 50,55,60
34 3x8mm 2x7mm 1 1 50,55,60
34 4x8mm 2x7mm 1 2 50,55,60
34 5x7mm 2x7mm 1 1 50,55,60
35 6x7mm 2x7mm 1 2 50,55,60
36 3x9mm 1x8mm 1 1 50,55,60
36 3x9mm 2x7mm 1 1 50,55,60
36 4x8mm 2x7mm 1 1 50,55,60
36 4x8mm 2x7mm 1 2 50,55,60
36 5x8mm 2x7mm 1 1 50,55,60
36 5x8mm 2x7mm 1 2 50,55,60
38 3x9mm 1x9mm 1 1 50,55,60
38 3x9mm 2x7mm 1 1 50,55,60
38 5x9mm 2x7mm 1 1 50,55,60
38 5x9mm 2x7mm 1 2 50,55,60
40 3x9mm 1x9mm 1 1 50,55,60
40 3x9mm 2x7mm 1 1 50,55,60
40 5x9mm 2x7mm 1 1 50,55,60
40 5x9mm 2x8mm 1 2 50,55,60
41 5x9mm 2x8mm 1 2 50,55,60
Energy Mining Quarry Taper Drill Bit Dia 32mm For Construction Works 0Energy Mining Quarry Taper Drill Bit Dia 32mm For Construction Works 1
