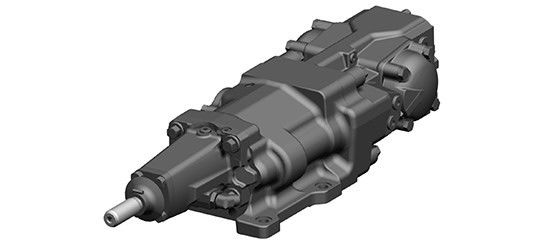

RD520 Rock Drills OMS 160 Jumbo Drilling 20kW 225kg

RD520  Rock Drills OMS 160 Jumbo Drilling 20kW 225kg
RD520  Rock Drills OMS 160 Jumbo Drilling 20kW 225kg

Large Image :  RD520 Rock Drills OMS 160 Jumbo Drilling 20kW 225kg

Product Details:
Model Number: RD520
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Price negotiations
Packaging Details: wooden box package
Delivery Time: 20 work days
Payment Terms: T/T
Supply Ability: 1+PCS+20 work days

RD520 Rock Drills OMS 160 Jumbo Drilling 20kW 225kg

Description
Hole Diameter Range: 43 - 64 Mm Kinetic Power: 20 KW
Percussion Rate: 75 Hz Rotation: 100 - 220 Bar
Stabilizer: Sleeve Type Rotation Motor Type: OMS 80, OMS 125 Or OMS 160
High Light:

RD520 Rock Drills

,

jumbo drilling machine

,

jumbo drilling machine 225kg

RD520 hydraulic rock drill is suitable for mining development and excavation of large mines

Product feature of  Rock Drills

RD520 hydraulic rock drill is designed for face drilling on mine development and tunneling jumbos. It is also suitable for bolt hole, exploration and injection hole drilling.

RD520 is a hydraulic percussive rock drill with independent reversible rotation and low profile height. Known for its hydraulic efficiency and high penetration rate, RD520 has excellent serviceability through modular construction and visual wear indicators.

Robustness is achieved by having only few pressurized seams between functional modules. The rock drill is equipped with a stabilizer to control contact between the drill bit and rock. The stabilizer also dampens recoil impulses from rock and lengthens the lifetime of drilling tools.

Product data of  Rock Drills



Technical data
Hole diameter range 43 - 64 mm
Hole diameter reaming 76 - 127 mm
Power class 20 kW
Percussion rate 75 Hz
Operating pressure
Percussion



120 - 220 bar

Rotation motor type OMS 80, OMS 125 or OMS 160
Drill steels R39 or Hex35 mm drifter rods, MF-rods highly recommended
Shanks T35 (male)
T38 (male)
T45 (male)
Weight 225 kg
