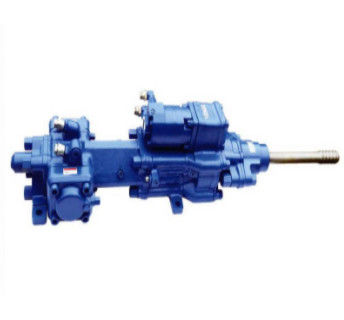

YYG260 Rock Drilling Tools 175 Bar Underground Rock Drilling Machine 450J

YYG260 Rock Drilling Tools 175 Bar Underground Rock Drilling Machine 450J
YYG260 Rock Drilling Tools 175 Bar Underground Rock Drilling Machine 450J

Large Image :  YYG260 Rock Drilling Tools 175 Bar Underground Rock Drilling Machine 450J

Product Details:
Place of Origin: China
Brand Name: YYG
Model Number: YYG 260
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Price negotiations
Packaging Details: wooden box package
Delivery Time: 20 work days
Payment Terms: T/T
Supply Ability: 1+PCS+20 work days

YYG260 Rock Drilling Tools 175 Bar Underground Rock Drilling Machine 450J

Description
Models: YYG 260 Percussion Oil Pressure: 175 Bar
Percussion Oil Flow: 140 I/min Rotation Oil Flow: 70 I/min
Rotation Oil Pressure: 150 Bar Output Energy: 30 KW
High Light:

YYG 260 Rock Drilling Tools

,

175 bar underground rock drilling machine

,

underground rock drilling machine 450J

Rock Drilling Tools YYG 260 hydraulic rock drill used in surface mining, underground deep hole

Product feature of  Rock Drilling Tools

YYG260 is used in surface mining, underground deep hole.
Contains a high strength spline sleeve for T51 specifications.
Effective aperture is 127mm or maximum aperture 165mm.

Product data of Rock Drilling Tools

Technical data
Percussion Oil Pressure bar 175
Percussion Oil Flow l/min 140
Rotation Oil Pressure bar 150
Rotation Oil Flow l/min 70
Rotation torque(max) Nm 1500
Rotation speed(max) rpm 190
Percussion frequency min 2500-3700
Percussion energy J 450
Output energy kW 30
Drilling diameter mm 127 - 165
Weight kg 260





YYG260 Rock Drilling Tools 175 Bar Underground Rock Drilling Machine 450J 0
