Product Details:
|
| Place Of Origin: | China | Product Name: | Drill Shank Adapter |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining, Quarrying | Type: | Drill Shank |
| Machine Type: | Drilling Tool | Material: | Carbon Steel |
| Processing Type: | Forging | Use: | Ore Mining |
| High Light: | Tamrock Rock Drilling Rod,t38 drill rod Diameter 46mm,Round t38 drill rod |
||
T45 1525-6400mm Rock Drilling Rod for Atlas/Furukawa/Montater//Tamrock
Product feature of Rock Drill Rods
HZJX is mainly used in the production of mining, drilling, drilling, quarrying and other related industries.
Can be designed and manufactured according to customer requirements.
We can use the conveyor rod to provide screws of different lengths and different types as shown in the figure
Thread specifications: R25, R32, R38, T38, T45, T51, GT60, etc.
Applications: bench drill, construction, surface mining, quarrying
Processing: CNC and proprietary heat treatment process
Packing: packed in cartons and packed in wooden cases
Delivery time: After receipt of advance payment, delivery will be made within 2 to 15 working days.
QC (quality control) : in cooperation with material experts in Guizhou University, we have a unique inspection.
Material: high quality alloy steel, 64 strips with the same
Shape: hexagon
Thread connection: R25, R32, R38, T38, T45, T51, etc.
Length: 600 mm - 6400 mm
Material: high quality alloy steel, 64 strips with the same
Shape: Round
Thread connection: R25, R32, R38, T38, T45, T51, GT60, etc.
Length: 600 mm - 6400 mm

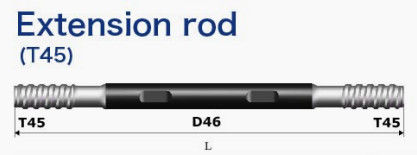

Product data of Drill Rock Drilling Rod
| SPECIFICATION FOR Rock Drilling Rod T45 | ||
| Length(mm) | Diameter(mm) | Weight(kg) |
| 1525 | 46 | 16.3 |
| 1830 | 46 | 19.7 |
| 2435 | 46 | 26.5 |
| 3050 | 46 | 33.4 |
| 3660 | 46 | 40.3 |
| 4270 | 46 | 47.2 |
|
4800 |
46 | 53.2 |
| 5525 | 46 | 61.2 |
| 6400 | 46 | 70.9 |
