TPB40 Pneumatic Concrete Breaker , Paving Breaker Tools Endure Hard Condition

China TPB40 Pneumatic Concrete Breaker , Paving Breaker Tools Endure Hard Condition supplier

Large Image :  TPB40 Pneumatic Concrete Breaker , Paving Breaker Tools Endure Hard Condition

Product Details:

Place of Origin: China
Brand Name: PRODRILL
Certification: ISO:9001
Model Number: TPB40

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pcs
Price: Negotiable
Packaging Details: WOODEN BOX
Delivery Time: 10-25 DAYS
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500Pcs/Month
Contact Now
Detailed Product Description
Type: Drill Bit Machine Type: Drilling Tool
Material: Carbide Processing Type: Forging
Use: Coal Mining Color: Red

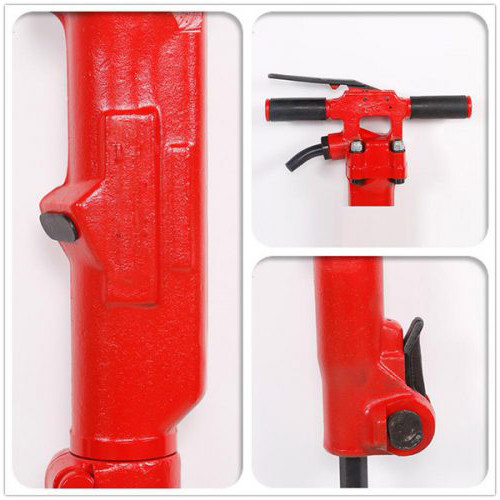

High Quality TPB40 Model with Red Color Pneumatic Paving Breaker for Breaking

All parts of pneumtic air pick breaker hammer are made of alloy steel, and have great durability.
Back head is fixed by four bolts, and can endure the extremely hard condition
Quick reblading-type gripper, easy changing chisel, Hex. Shank
It is used to break or excavate the asphalt.



Model TPB40 TPB60 TPB90
Piston diameter 44mm 57.15mm 66.67mm
Piston stroke 100mm 146mm 152mm
Impact frequency 900 minute/Time 1250 minute/Time 1400 minute/Time
Net weight 18kg/39.6lbs 30kg/60lbs 42kg/92.4lbs
Total length 660mm 645mm 723mm
Air consumption 1.6m3/minute 2.0m3/minute 2.2m3/minute
Hose size 19mm(3/4inch) 19mm(3/4inch) 19mm(3/4inch)
Shank specifications 1×4-1/4 25X108 1×4-1/4 25X108 1×4-1/4 25X108
Inlet size 3/4pt 3/4pt 3/4pt
Air pressure 0.63Mpa 0.63Mpa 0.63Mpa



TPB40 Pneumatic Concrete Breaker , Paving Breaker Tools Endure Hard Condition
