Hand Held Pneumatic Rock Drill Jack Hammer , Portable Jack Hammer Steel Material

China Hand Held Pneumatic Rock Drill Jack Hammer , Portable Jack Hammer Steel Material supplier
Hand Held Pneumatic Rock Drill Jack Hammer , Portable Jack Hammer Steel Material supplier Hand Held Pneumatic Rock Drill Jack Hammer , Portable Jack Hammer Steel Material supplier

Large Image :  Hand Held Pneumatic Rock Drill Jack Hammer , Portable Jack Hammer Steel Material

Product Details:

Place of Origin: China
Brand Name: PRODRILL
Certification: ISO:9001
Model Number: Y26

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pcs
Price: Negotiable
Packaging Details: WOODEN BOX
Delivery Time: 10-15 DAYS
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000Pcs/Month
Contact Now
Detailed Product Description
Type: Rock Drill Application: Quarrying, Mining
Color: Multi Weight: 26 KG
Size: 661*247*195 Mm Material: Steel

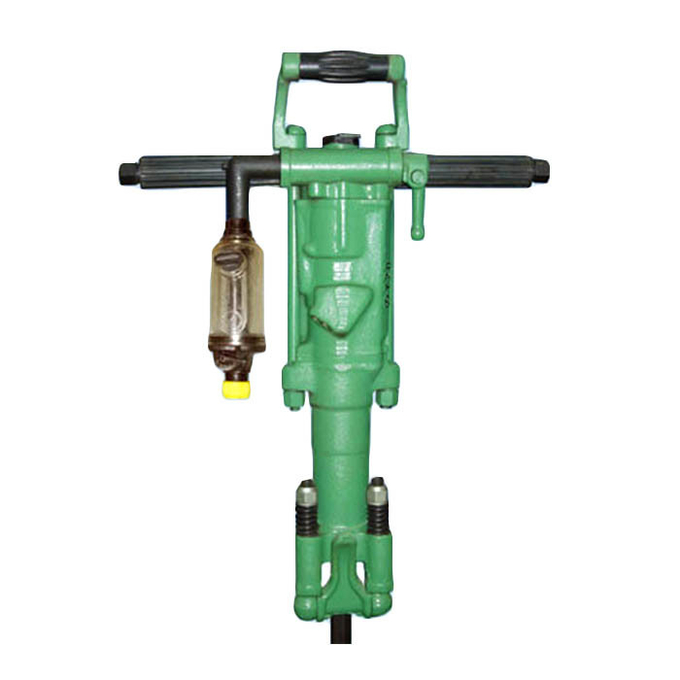

Y26 Pneumatic Rock Drill Jack Hammer for Quarrying, Drilling with best price

Prodrill Y26 rock drill is mainly used for drilling and blasting in secondary mines, railways, water conservancy and stone works. It can perform dry and wet rock drilling on medium hard or hard rock, and drill vertical or inclined guns. hole.

The operator's mechanical vibration is less, the return force is stronger, and the parts are durable.


ModelY6Y8Y10Y20Y19AY24Y26Y28
Weight(kg)66101819242626
Air consumption (L/s)≤9.5<9.0≤92543≤50≤47
length (mm)426428458605600604650661
shank (mm)15*8815*8815*8822*10822*10822*10822(25)*10822*108
Bore Dia (mm)2020-3020-3030-4230-4230-4230-4234-42
Drill depth (m)0.50.50.535555
Impact rate (Hz)5151≥5134353027≥28
Hose connection(mm)13  16 or19191919
Air pressure(Mpa) 0.4-0.630.2-0.3  0.40.40.4


Hand Held Pneumatic Rock Drill Jack Hammer , Portable Jack Hammer Steel Material
